By the end of the sixth century A.D., the Chinese had managed to build kites large and aerodynamic enough to sustain the weight of an average-sized person. It was only a matter of time before someone decided to simply remove the kite strings and see what happened. Most early glider designs did not ensure safe flight; the problem was that early flight pioneers did not sufficiently understand the underlying principles that made a bird's wing work. Starting in the 1880s technical and scientific advancements were made that led to the first truly practical gliders. Otto Lilienthal built controllable gliders in the 1890s, with which he could ridge soar. His rigorously documented work influenced later designers, making Lilienthal one of the most influential early aviation pioneers. His aircraft was controlled by weight shift and is similar to a modern hang glider.
Hang gliding saw a stiffened flexible wing hang glider in 1904, when Jan Lavezzari flew a double lateen sail hang glider off Berck Beach, France. In 1910 in Breslau, the triangle control frame with hang glider pilot hung behind the triangle in a hang glider, was evident in a gliding club's activity. The biplane hang glider was very widely publicized in public magazines with plans for building; such biplane hang gliders were constructed and flown in several nations since Octave Chanute and his tailed biplane hang gliders were demonstrated. In April 1909, a how-to article by Carl S. Bates proved to be a seminal hang glider article that seemingly affected builders even of contemporary times, as several builders would have their first hang glidermade by following the plan in his article. Volmer Jensen with a biplane hang glider in 1940 called VJ-11 allowed safe three-axis control of a foot-launched hang glider.

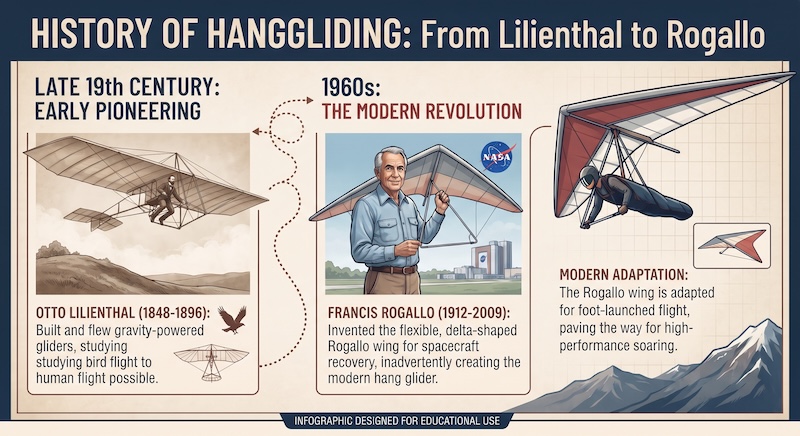

On November 23, 1948, Francis Rogallo and Gertrude Rogallo applied for a kite patent for a fully flexible kited wing with approved claims for its stiffenings and gliding uses; the flexible wing or Rogallo wing, which in 1957 the American space agency NASA began testing in various flexible and semi-rigid configurations in order to use it as a recovery system for the Gemini space capsules. The various stiffening formats and the wing's simplicity of design and ease of construction, along with its capability of slow flight and its gentle landing characteristics, did not go unnoticed by hang glider enthusiasts. In 1960–1962 Barry Hill Palmer adapted the flexible wing concept to make foot-launched hang gliders with four different control arrangements. In 1963 Mike Burns adapted the flexible wing to build a towable kite-hang glider he called Skiplane. In 1963, John W. Dickenson adapted the flexible wing airfoil concept to make another water-ski kite glider; for this, the Fédération Aéronautique Internationale vested Dickenson with the Hang Gliding Diploma (2006) for the invention of the "modern" hang glider. Since then, the Rogallo wing has been the most used airfoil of hang gliders.
There are basically two types of sail materials used in hang glider sails: woven polyester fabrics, and composite laminated fabrics made of some combinations.
Woven polyester sailcloth is a very tight weave of small diameter polyester fibers that has been stabilized by the hot-press impregnation of a polyester resin. The resin impregnation is required to provide resistance to distortion and stretch. This resistance is important in maintaining the aerodynamic shape of the sail. Woven polyester provides the best combination of light weight and durability in a sail with the best overall handling qualities.
Laminated sail materials using polyester film achieve superior performance by using a lower stretch material that is better at maintaining sail shape but is still relatively light in weight. The disadvantages of polyester film fabrics is that the reduced elasticity under load generally results in stiffer and less responsive handling, and polyester laminated fabrics are generally not as durable or long lasting as the woven fabrics.
Triangle control frame

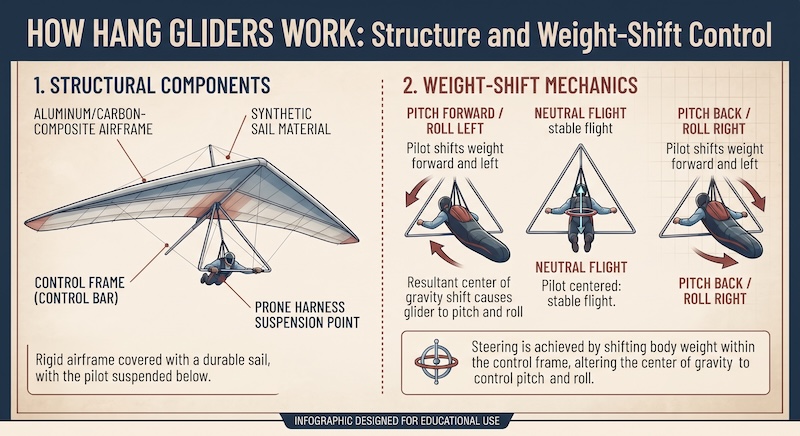

In most hang gliders, the pilot is ensconced in a harness suspended from the airframe, and exercises control by shifting body weight in opposition to a stationary control frame, also known as triangle control frame, control bar or base bar. This bar is usually pulled to allow for greater speed. Either end of the control bar is attached to an upright pipe, where both extend and are connected to the main body of the glider. This creates the shape of a triangle or 'A-frame'. In many of these configurations additional wheels or other equipment can be suspended from the bottom bar or rod ends.
Images showing a triangle control frame on Otto Lilienthal's 1892 hang glider shows that the technology of such frames has existed since the early design of gliders, but he did not mention it in his patents. A control frame for body weight shift was also shown in Octave Chanute's designs. It was a major part of the now common design of hang gliders by George A. Spratt from 1929. The most simple A-frame that is cable-stayed was demonstrated in a Breslau gliding club hang gliding meet in a battened wing foot-launchable hang glider in the year 1908 by W. Simon; hang glider historian Stephan Nitsch has collected instances also of the U control frame used in the first decade of the 1900s; the U is variant of the A-frame.
Training and safety
Learning to hang glide
Due to the poor safety record of early hang gliding pioneers, the sport has traditionally been considered unsafe. Advances in pilot training and glider construction have led to a much improved safety record. Modern hang gliders are very sturdy when constructed to Hang Glider Manufacturers Association, BHPA, Deutscher Hängegleiterverband, or other certified standards using modern materials. Although lightweight they can be easily damaged, either through misuse or by continued operation in unsafe wind and weather conditions. All modern gliders have built-in dive recovery mechanisms such as luff lines in kingposted gliders, or "sprogs" in topless gliders.
Pilots fly in harnesses that support their bodies. Several different types of harnesses exist. Pod harnesses are put on like a jacket and the leg portion is behind the pilot during launch. Once in the air the feet are tucked into the bottom of the harness. They are zipped up in the air with a rope and unzipped before landing with a separate rope. A cocoon harness is slipped over the head and lies in front of the legs during launch. After takeoff, the feet are tucked into it and the back is left open. A knee hanger harness is also slipped over the head but the knee part is wrapped around the knees before launch and just pick up the pilots leg automatically after launch. A supine or suprone harness is a seated harness. The shoulder straps are put on before launch and after take off the pilot slides back into the seat and flies in a seated position.
Pilots carry a parachute enclosed in the harness. In case of serious problems, the parachute is manually deployed and carries both pilot and glider down to earth. Pilots also wear helmets and generally carry other safety items such as knives (for cutting their parachute bridle after impact or cutting their harness lines and straps in case of a tree or water landing), light ropes (for lowering from trees to haul up tools or climbing ropes), radios (for communication with other pilots or ground crew), and first-aid equipment.
The accident rate from hang glider flying has been dramatically decreased by pilot training. Early hang glider pilots learned their sport through trial and error and gliders were sometimes home-built. Training programs have been developed for today's pilot with emphasis on flight within safe limits, as well as the discipline to cease flying when weather conditions are unfavorable, for example: excess wind or risk cloud suck.
In the UK there is one death per 116,000 flights, a risk comparable to running a marathon or playing football for a year. An estimate of worldwide mortality rate is one death per 1,000 active pilots per year.
Most pilots learn at recognised courses which lead to the internationally recognised International Pilot Proficiency Information card issued by the FAI.
Launch techniques include launching from a hill on foot, tow-launching from a ground-based tow system, aerotowing (behind a powered aircraft), powered harnesses, and being towed up by a boat. Modern winch tows typically utilize hydraulic systems designed to regulate line tension, this reduces scenarios for lock out as strong winds result in additional length of rope spooling out rather than direct tension on the tow line. Other more exotic launch techniques have also been used successfully, such as hot air balloon drops from very high altitude. When weather conditions are unsuitable to sustain a soaring flight, this results in a top-to-bottom flight and is referred to as a "sled run". In addition to typical launch configurations, a hang glider may be so constructed for alternative launching modes other than being foot launched; one practical avenue for this is for people who physically cannot foot-launch.
In 1983 Denis Cummings re-introduced a safe tow system that was designed to tow through the centre of mass and had a gauge that displayed the towing tension, it also integrated a 'weak link' that broke when the safe tow tension was exceeded. After initial testing, in the Hunter Valley, Denis Cummings, pilot, John Clark, (Redtruck), driver and Bob Silver, officianado, began the Flatlands Hang gliding competition at Parkes, NSW. The competition quickly grew, from 16 pilots the first year to hosting a World Championship with 160 pilots towing from several wheat paddocks in western NSW. In 1986 Denis and 'Redtruck' took a group of international pilots to Alice Springs to take advantage of the massive thermals. Using the new system many world records were set. With the growing use of the system, other launch methods were incorporated, static winch and towing behind a ultralight trike or an ultralight airplane.
Good gliding weather. Well formed cumulus clouds with darker bases suggest active thermals and light winds.

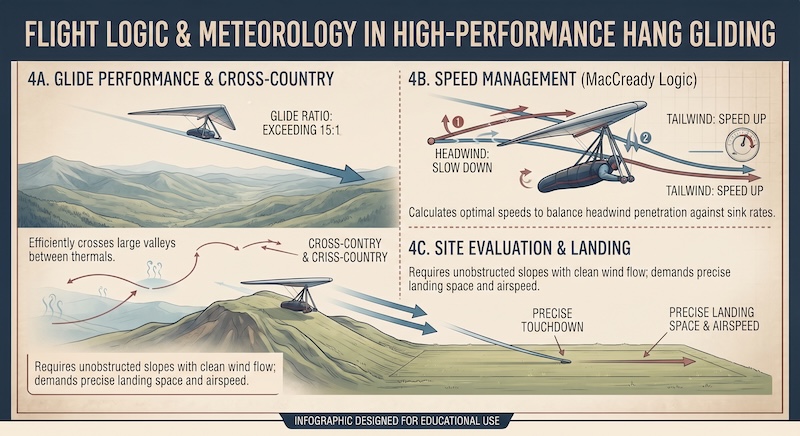

A glider in flight is continuously descending, so to achieve an extended flight, the pilot must seek air currents rising faster than the sink rate of the glider. Selecting the sources of rising air currents is the skill that has to be mastered if the pilot wants to achieve flying long distances, known as cross-country (XC). Rising air masses derive from the following sources:

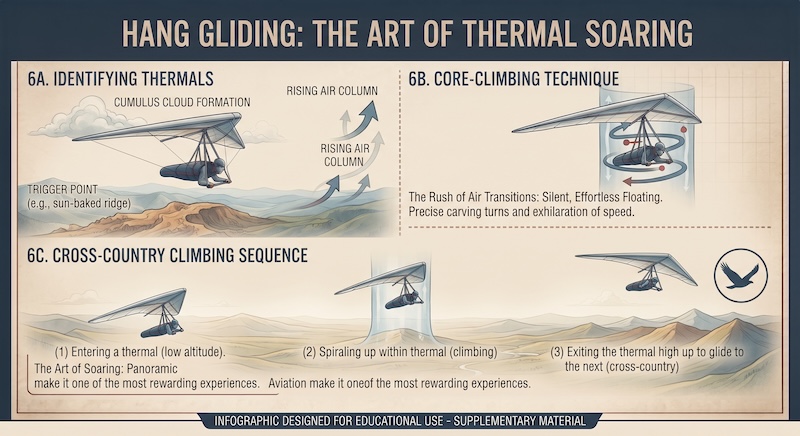

The most commonly used source of lift is created by the Sun's energy heating the ground which in turn heats the air above it. This warm air rises in columns known as thermals. Soaring pilots quickly become aware of land features which can generate thermals and their trigger points downwind, because thermals have a surface tension with the ground and roll until hitting a trigger point. When the thermal lifts, the first indicator are the swooping birds feeding on the insects being carried aloft, or dust devils or a change in wind direction as the air is pulled in below the thermal. As the thermal climbs, bigger soaring birds indicate the thermal. The thermal rises until it either forms into a cumulus cloud or hits an inversion layer, which is where the surrounding air is becoming warmer with height, and stops the thermal developing into a cloud. Also, nearly every glider contains an instrument known as a variometer (a very sensitive vertical speed indicator) which shows visually (and often audibly) the presence of lift and sink. Having located a thermal, a glider pilot will circle within the area of rising air to gain height. In the case of a cloud street, thermals can line up with the wind, creating rows of thermals and sinking air. A pilot can use a cloud street to fly long straight-line distances by remaining in the row of rising air.
Ridge lift occurs when the wind encounters a mountain, cliff or hill. The air is pushed up the windward face of the mountain, creating lift. The area of lift extending from the ridge is called the lift band. Providing the air is rising faster than the gliders sink rate, gliders can soar and climb in the rising air by flying within the lift band and at right angle to the ridge. Ridge soaring is also known as slope soaring.
With each generation of materials and with the improvements in aerodynamics, the performance of hang gliders has increased. One measure of performance is the glide ratio. For example, a ratio of 12:1 means that in smooth air a glider can travel forward 12 metres while only losing 1 metre of altitude.
Stability and equilibrium

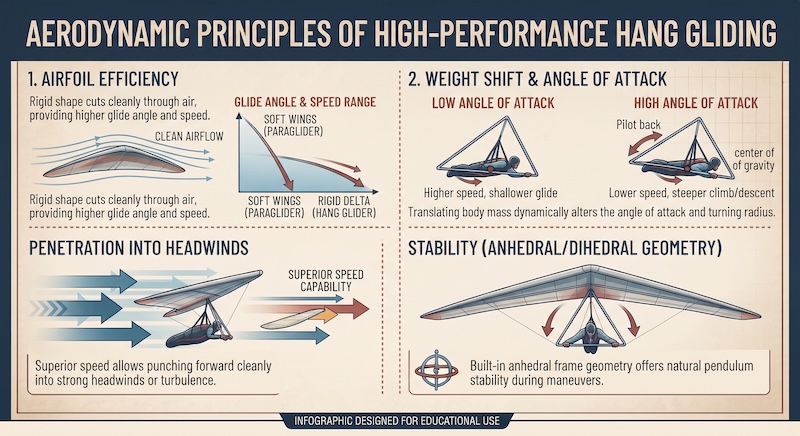

Because hang gliders are most often used for recreational flying, a premium is placed on gentle behavior especially at the stall and natural pitch stability. The wing loading must be very low in order to allow the pilot to run fast enough to get above stall speed. Unlike a traditional aircraft with an extended fuselage and empennage for maintaining stability, hang gliders rely on the natural stability of their flexible wings to return to equilibrium in yaw and pitch. Roll stability is generally set to be near neutral. In calm air, a properly designed wing will maintain balanced trimmed flight with little pilot input. The flex wing pilot is suspended beneath the wing by a strap attached to his harness. The pilot lies prone (sometimes supine) within a large, triangular, metal control frame. Controlled flight is achieved by the pilot pushing and pulling on this control frame thus shifting his weight fore or aft, and right or left in coordinated maneuvers.
Most flexible wings are set up with near neutral roll due to sideslip (anhedral effect). In the roll axis, the pilot shifts his body mass using the wing control bar, applying a rolling moment directly to the wing. The flexible wing is built to flex differentially across the span in response to the pilot applied roll moment. For example, if the pilot shifts his weight to the right, the right wing trailing edge flexes up more than the left, allowing the right wing to drop and slow down.
The yaw axis is stabilized through the sweep back of the wings. The swept planform, when yawed out of the relative wind, creates more lift on the advancing wing and also more drag, stabilizing the wing in yaw. If one wing advances ahead of the other, it presents more area to the wind and causes more drag on that side. This causes the advancing wing to go slower and to fall back. The wing is at equilibrium when the aircraft is traveling straight and both wings present the same amount of area to the wind.
The pitch control response is direct and very efficient. It is partially stabilized by the sweep of the wings. The wing centre of gravity is close to the hang point and, at the trim speed, the wing will fly "hands off" and return to trim after being disturbed. The weight-shift control system only works when the wing is positively loaded (right side up). Positive pitching devices such as reflex lines or washout rods are employed to maintain a minimum safe amount of washout when the wing is unloaded or even negatively loaded (upside down). Flying faster than trim speed is accomplished by moving the pilot's weight forward in the control frame; flying slower by shifting the pilot's weight aft (pushing out).
Furthermore, the fact that the wing is designed to bend and flex, provides favorable dynamics analogous to a spring suspension. This provides a gentler flying experience than a similarly sized rigid-winged hang glider.
To maximize a pilot's understanding of how the hang glider is flying, most pilots carry flight instruments. The most basic being a variometer and altimeter—often combined. Some more advanced pilots also carry airspeed indicators and radios. When flying in competition or cross country, pilots often also carry maps and/or GPS units. Hang gliders do not have instrument panels as such, so all the instruments are mounted to the control frame of the glider or occasionally strapped to the pilot's forearm.
Gliding pilots are able to sense the acceleration forces when they first hit a thermal, but have difficulty gauging constant motion. Thus it is difficult to detect the difference between constantly rising air and constantly sinking air. A variometer is a very sensitive vertical speed indicator. The variometer indicates climb rate or sink rate with audio signals (beeps) and/or a visual display. These units are generally electronic, vary in sophistication, and often include an altimeter and an airspeed indicator. More advanced units often incorporate a barograph for recording flight data and/or a built-in GPS. The main purpose of a variometer is in helping a pilot find and stay in the 'core' of a thermal to maximize height gain, and conversely indicating when he or she is in sinking air and needs to find rising air. Variometers are sometimes capable of electronic calculations to indicate the optimal speed to fly for given conditions. The MacCready theory answers the question on how fast a pilot should cruise between thermals, given the average lift the pilot expects in the next thermal climb and the amount of lift or sink he encounters in cruise mode. Some electronic variometers make the calculations automatically, allowing for factors such as the glider's theoretical performance (glide ratio), altitude, hook in weight, and wind direction.
